Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP

Brand Name : Topband Lifepo4 battery

Model Number : TB-BL12200F

Certification : CE, ISO9001, ISO14001

Place of Origin : China

MOQ : 50

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 450Mwh/year

Delivery Time : 2~4weeks for samples; 4~6weeks for mass production

Packaging Details : standard export carton for Lifepo4 12v 200ah Battery Pack

Items : Lifepo4 12v 200ah Battery Pack with Bluetooth APP

Type : Lifeo4 battery

Normal Capacity : 200Ah

Communication function : via Bluetooth APP

Internal Resistance : ≤20mΩ

Weight : 24.2KG

Application : RV Caravans/Camping cars, Marine and boats

Output Voltage Range : 8.0~14.6V

Warranty : 2years

Size(LxWxH) : 485*170*245mm

housing : Black plastic hoursing(standard color)

Keywords : Lifepo4 battery, lithium ion battery, 12V lifepo4 battery

Protecton : built-in BMS with Bluetooth Monitoring

Bluetooth APP : Topband standard

Standard charge current : 60A

Standard discharge current : 80A

Certificate : CE

Contact Now

Rechargeable Deep Cycle Prismatic Cell Lifepo4 12v 200ah Battery Pack with Bluetooth APP

1. The Features of Lifepo4 12v 200ah Battery Pack with Bluetooth Monitoring function:

Output with high efficiency
Good performance under wide temperature -20-60℃.
Good safety performance
Long cycle life time, over 2000 cycle times(100%DOD).
Fast charging.
Low self-discharge.
Evironment friendly.

2. The Specification of Lifepo4 12v 200ah Battery Pack

* Series connection is prohibited for standard type, if needed please let us know in advance.

1	Nominal Voltage	12.8V
2	Normal Capacity Minimum capacity	200Ah 190Ah
3	Internal Resistance	≤20mΩ
4	Battery operation charge temperature range	0~45℃
5	Normal charge voltage	14.6±0.1V
6	Recommended float charge voltage(for Standby use)	13.8±0.1V
7	standard charge current	60A@Battery initial Temp 25±5℃
8	Maximum charge current	80A
9	Battery operation temperature range @discharging	-20~60℃
10	Output Voltage Range	8.0~14.6V
11	standard discharge current	80A withstand 30min @Battery initial Temp 25±5℃
12	Maximum discharge current	100A withstand 30min
13	Discharge Cut-off voltage	8.0V
14	Dimension	Length 485±2mm
		Width 170±2mm
		Height 245±2mm
15	Weight	Approx. 24.2Kg

Brief description of Lifepo4 12v 200ah Battery Pack with Bluetooth APP

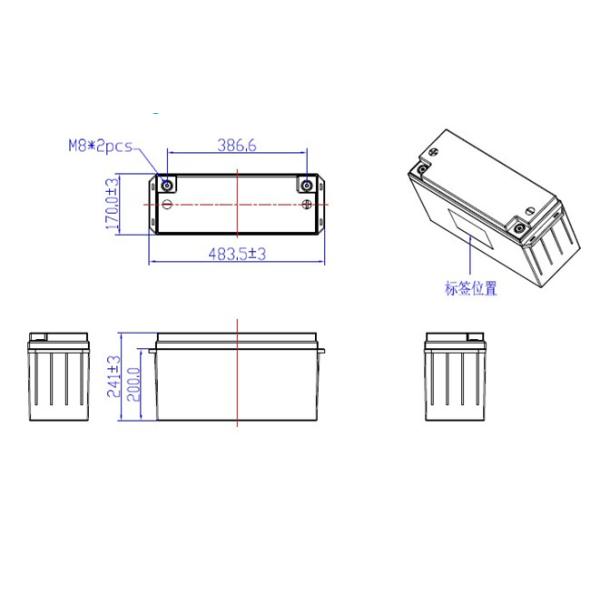

2. The dimension of Lifepo4 12v 200ah Battery Pack

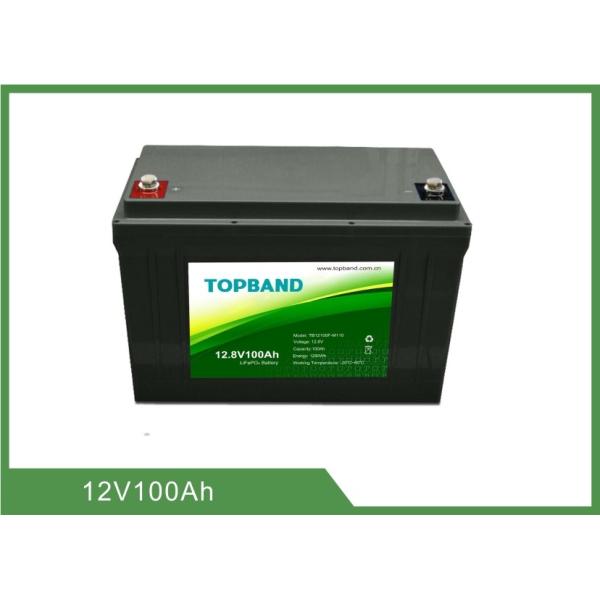

IF ABOVE SPECS AND DIMENSTIONS IS NOT OKAY FOR YOU, WE ALSO HAVE OTHER ITEMS, PLEASE FREELY SEND US YOUR INQUIRY, SUCH AS 12V 100Ah, 12V 150AH, 12V 22AH Lifepo4 battery pack for options.

Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP

3. Protective circuit specification
The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

NO.	Items	Content	Specification
5.1	Over charge	Over-charge protection for each cell	3.90±0.05V
		Over-charge release for each cell	3.60±0.05V
		Over-charge release method	Under the release voltage
5.2	Over discharge	Over-discharge protection for each cell	2.0±0.05V
		Over-discharge release for each cell	2.5±0.05V
		Over-discharge release method	Charge to recovery
5.3	Over current	Discharge over current protection	300A～500A
		Protection delay time	50s～200ms
		Over current release method	Delay about 8S after recovery
5.4	Short circuit	Do not short-circuit the electrodes	Designed For 500A～750A /500us
5.5	Battery temperature	Charge over temperature	Protection @65±5℃
		Charge over temperature	Release @50±5℃
		Discharge over temperature	Protection @65±5℃
		Discharge over temperature	Release @50±5℃
		Charge low temperature protection	Protection @-10±5℃
		Charge low temperature protection	Release @0±5℃
		MOSFET over temperature protection	Protection @103±10℃
		MOSFET over temperature protection	Release @75±10℃

4. Storage & Transportation

Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
Battery should be stayed in the warehouse -20℃～35℃ where it’s dry, clean, shade, and well-ventilated.
The battery should be stored in 50% SOC during transportation.
The battery need to be charged every 6 months if out of use.
Keep the battery against dropping, turning over and serious stacking during loading

5. The Application of Lifepo4 12v 200ah Battery Pack: RV Caravans, Camping cars, Automotives, Sailing, Marine and boats,etc.
Deep Cycle Prismatic Cell Lifepo4 Rechargeable Battery 12v 200ah With Bluetooth APP
