3.2V 50Ah Lithium Iron Phosphate Deep Cycle Battery 2 Years Warranty

Brand Name : Topband
Model Number : A32173128P-50Ah
Certification : CE,UL,UN38.3,MSDS
Place of Origin : China
MOQ : 500pcs
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 450Mwh/year
Delivery Time : 2~4weeks for samples; 4~6weeks for mass production
Packaging Details : standard export carton
Chemistry : LiFePO4
Norminal voltage : 3.2V
Norminal capacity : 50Ah
Weight : 1.25kg
Dimension : 173x31.3x128mm
Cycle life : ≥2000 (100% DOD)
Internal Impedance : ≤ 1.0mΩ
Warranty : 2 years
Contact Now

Deep cycle lithium iron phosphate Lifepo4 Battery Cells 3.2V 50Ah

1. LiFePO4 Battery Cells 3.2V 50Ah Specification

ItemSpecificationRemark
1.0 Nominal Capacity50Ah0.5C discharge capacity
1.1 Typical Capacity50Ah
1.2 Internal Impedance≤1.0mΩBy AC 1KHz
1.3 Nominal Voltage3.20V
1.4 Cell Weight1250±20gcontaining package
1.5 End-of-charge Voltage3.65VAt CC mode
1.6 End-of-charge Current0.05CAt CV mode
1.7 End-of-discharge Voltage2.00V
1.8 Charge Method0.5C CC/CV180 min
1.9 Quick Charge Method1C CC/CV90 min
1.10 Max Continuous Discharge current100AContinuous Discharge Time: 30 minutes
1.11 Max pulse Discharge Current150AContinuous Discharge Time: 10 seconds
1.12 Cycle Life≥2000cycles

0.5C Continual Discharge: ≥80%
(100% DOD)

1.13 Operating
Temperature Range

Charging Temperature0~45℃

Ambient temperature:25℃±5℃
Cell exterior temperature must be <65℃

Discharging Temperature

-20~55℃

Ambient temperature: 25℃±5℃
Cell exterior temperature not exceed 80℃

Storage Temperature-20~35℃Recommended temperature range for long term storage is –10~ +30°℃
1.14 Shelf Life2 year
1.15 AppearanceWithout break, scratch, distortion, contamination, leakage and so on

2. Similar LiFePO4 Battery Cells 3.2V 12Ah/20Ah/25Ah/27Ah

3.2V Lithium Iron Phosphate Cells
Cell ModelVolt(V)Capacity(Ah)Inpendance(mΩ)Weight(g)Cycle lifeCycle condition
TB-01865135C-12Ah3.2V12Ah≤12310±102000 cycles100% DOD
TB-02707145C-20Ah3.2V20Ah≤10525±102000 cycles100% DOD
TB-02707145D-20Ah3.2V20Ah≤4525±102000 cycles100% DOD
TB-02707180C-25Ah3.2V25Ah≤6650±102000 cycles100% DOD
TB-02707180D-25Ah3.2V25Ah≤4650±102000 cycles100% DOD
TB-02707180C-27Ah3.2V27Ah≤4660±102000 cycles100% DOD


3. Storage & Transportation

  • Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
  • Battery should be stayed in the ware house -20℃~35℃ where it’s dry, clean, shade, and well-ventilated.
  • The battery should be stored in 50% SOC during transportation.
  • The battery need to be charged every 6 months if out of use.
  • Keep the battery against dropping, turning over and serious stacking during loading.

4. Warning & Tips

Please read and follow the specification and caution remarks on battery surface before use the battery. Improper use may cause heat, fire, rupture, damage or capacity deterioration of the battery. SHENZHEN TOPBAND NEW ENERGY CO.,LTD. Describes is not responsible for any accidents caused by the usage without following our specification.

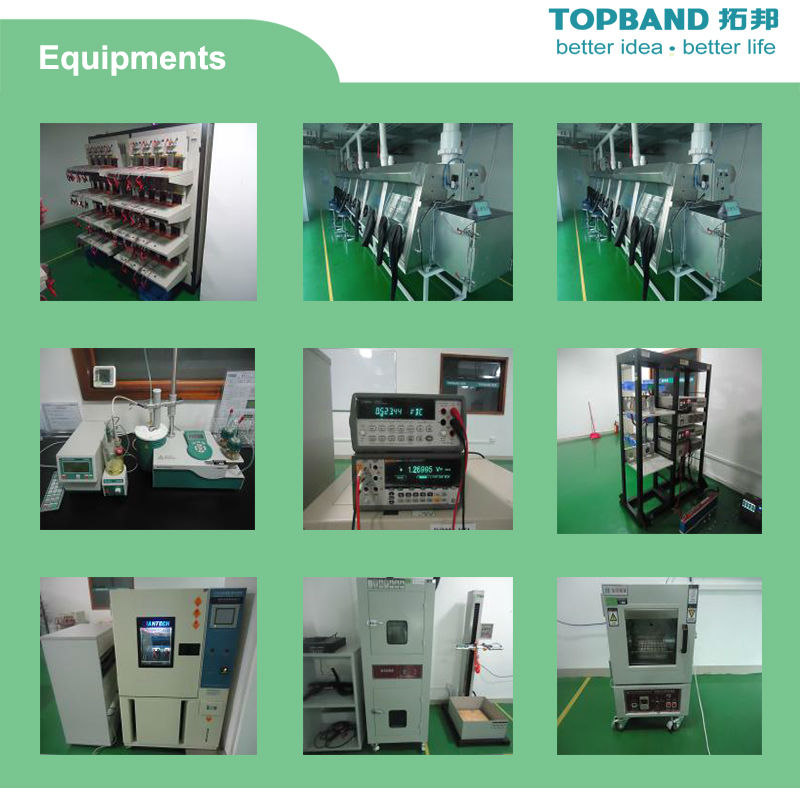

5. Factory Overview


6. Factory Overview
