Long Life Time UPS Rechargeable Batteries 12V 125Ah Lithium Battery Pack

Shenzhen Topband Battery Co., Ltd

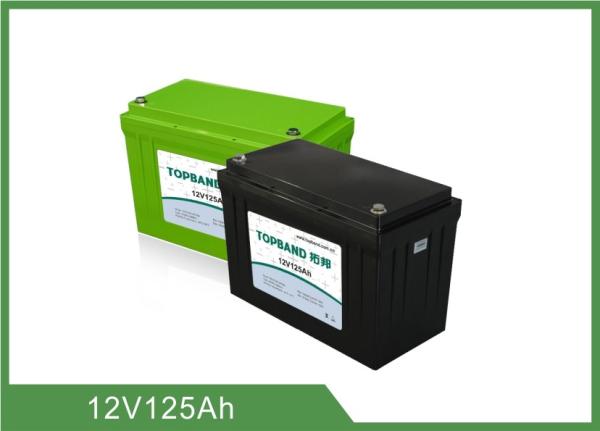

Long Life Time UPS Rechargeable Batteries 12V 125Ah Lithium Battery Pack

Brand Name : Topband

Model Number : TB12125F-M108B

Certification : ISO9001, ISO14001, IEC

Place of Origin : China

MOQ : 10

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 450Mwh/year

Delivery Time : 2~4weeks for samples; 4~6weeks for mass production

Packaging Details : standard export carton

Material : Lifepo4 Chemistry

Nominal Voltage : 12.8V

Normal Capacity : 125Ah

Dimension & weight : 318x165x215mm & 15kg

Warranty : 2 years

Life time : more than 2000 times (100% DOD)

Contact Now

12V 125Ah Lithium Battery Pack with BMS protection , IEC certificate

1. Lithium battery pack 12V 125Ah Specification

NO. Items Criteria Remarks
1 Rated Capacity 125Ah
Minimum Capacity 119Ah
2 Energy 1.6KWh
3 Nominal Voltage 12.8V
4 Outgoing Voltage ≥12.8V
5 Internal resistance ≤20mΩ
6 Series parallel application up to 4 series-connected applications
7 Limited charge voltage 14.6±0.1V
8 Floating charge voltage 13.8±0.2V
9 Standard charge current 50A
10 Maximum charge current 85A
11 Standard discharge current 80A
12 Maximum discharge current 95A/withstand 30min @Battery initial Temp 25±5℃
13 Pulse discharge current Withstand the 350A/3s
14 Discharge cut-off voltage 10.0V


15

Dimension Length: 318±2mm
Width: 165±2mm
Height: 215±2mm
16 Weight Approx: 14.7±0.5Kg


17

Operating Temperature Charging:0~45℃ Allows a short time to work at 65 ° C
Discharging:-20~60℃ Allows a short time to work at 65 ° C
Recommended operating temperature:15℃~35℃
18 Self-discharge rate Residual capacity:≤3%/month;≤15%/years
Reversible capacity:≤1.5%/month;≤8%/years
19 Storage Temperature & Humidity Range Less than 1 month:-20℃~35℃,45%RH~75%RH
Less than 3 months:-10℃~35℃,45%RH~75%RH

Recommended storage environment:
15℃~35℃,45%RH~75%RH

Long time storage:
If the battery need be stored for a long time, the voltage should be 13.2V(50%SOC), and stored in the condition as storage proposal. It need at least one charge & discharge cycle every six months


2. Smart Lithium battery 12V 125Ah feature

  1. High energy density
  2. High working voltage for single battery cells
  3. Pollution-free
  4. Long cycle life
  5. No memory effect
  6. Capacity, resistance, Voltage, platform time consistency is good
  7. With short-circuit production function, safe and reliable
  8. Factory price & High quality
  9. Good consistency, low self discharge
  10. Light weight, small size
  11. High discharge rate
  12. Quality and security guaranted,with CE,ROHS approval.
  13. The lifepo4 battery pack is widely used for electric bicycle,golf car,electric bike,electric wheelchair,power tools,electric scooter,emergency light,etc

3.​ Warranty:

  • The products will be checked everything is fine before ship out;
  • 2 year warranty. (The products could be Exchanged or Refunded if it defected in 2 year, in the case of correct operation according to the technical specification.)
  • Our products have received high reputation. and we own the best after-sale service. If any problems happen, our team will do our best to solve for customers.


4. Dimension
Long Life Time UPS Rechargeable Batteries 12V 125Ah Lithium Battery Pack



Long Life Time UPS Rechargeable Batteries 12V 125Ah Lithium Battery Pack
